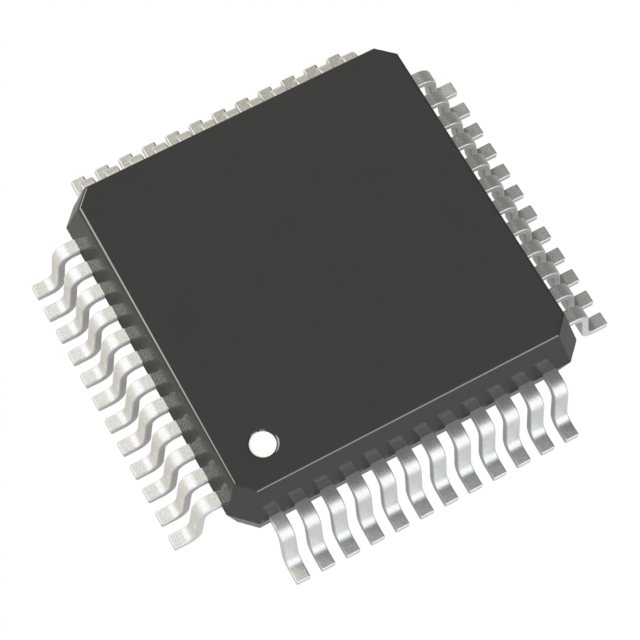

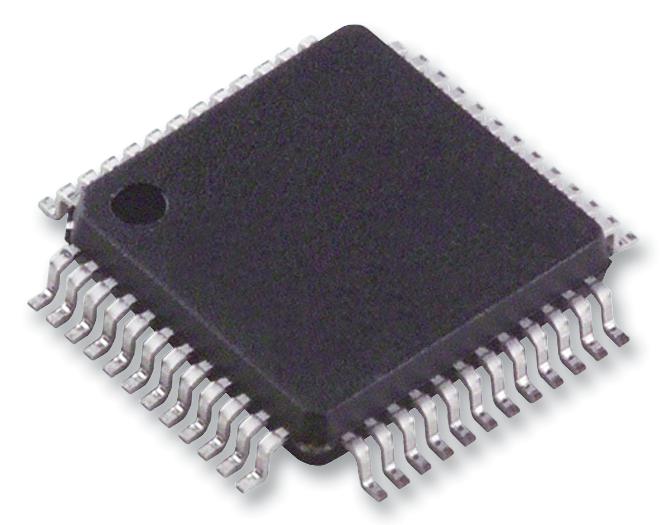

Unlock Renesas R5F51116ADFL#3A MCU Flash Firmware from its locked memory is a reverse engineering microcontroller process, through which the original binary file can be readout from MCU;

• 32-bit RX CPU core32 MHz maximum operating frequency

Capable of 50 DMIPS when operating at 32 MHz

• Accumulator handles 64-bit results (for a single instruction) from 32-bit × 32-bit operations
• Multiplication and division unit handles 32-bit × 32-bit operations (multiplication instructions take one CPU clock cycle;

Fast interrupt

CISC Harvard architecture with five-stage pipeline

Variable-length instruction format, ultra-compact code

On-chip debugging circuit

• Low power consumption functionsOperation from a single 1.8 to 3.6 V supplyThree low power consumption modesSupply current

High-speed operating mode: 0.11 mA/MHz Software standby mode: 0.44 μA

• Recovery time from software standby mode: 4.8 μs
  • On-chip flash memory for code, no wait states
    • Operation at 32 MHz, read cycle of 31.25 ns
    • No wait states for reading at full CPU speed
    • 16 to 512 Kbyte capacities
    • Programmable at 1.8 V
    • For instructions and operands
  • On-chip data flash memory
    • 8 Kbytes

1,000,000 Erase/Write cycles (typ.)

• BGO (Background Operation)
  • On-chip SRAM, no wait states
    • 8 to 64 Kbyte capacities
  • Data transfer controller (DTC)
    • Four transfer modes
    • Transfer can be set for each interrupt source.
  • Event link controller (ELC)
    • Module operation can be initiated by event signals without going through interrupts.
    • Link operation between modules is possible while the CPU is sleeping.
