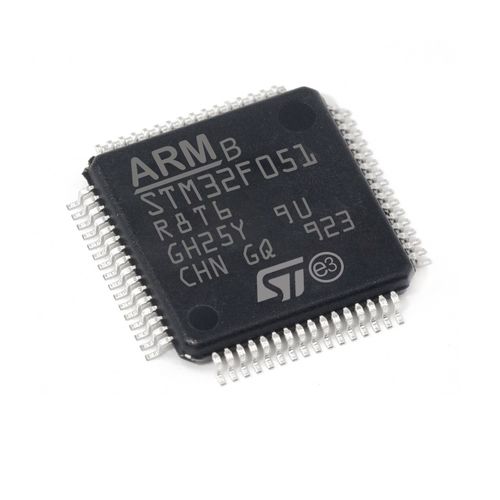

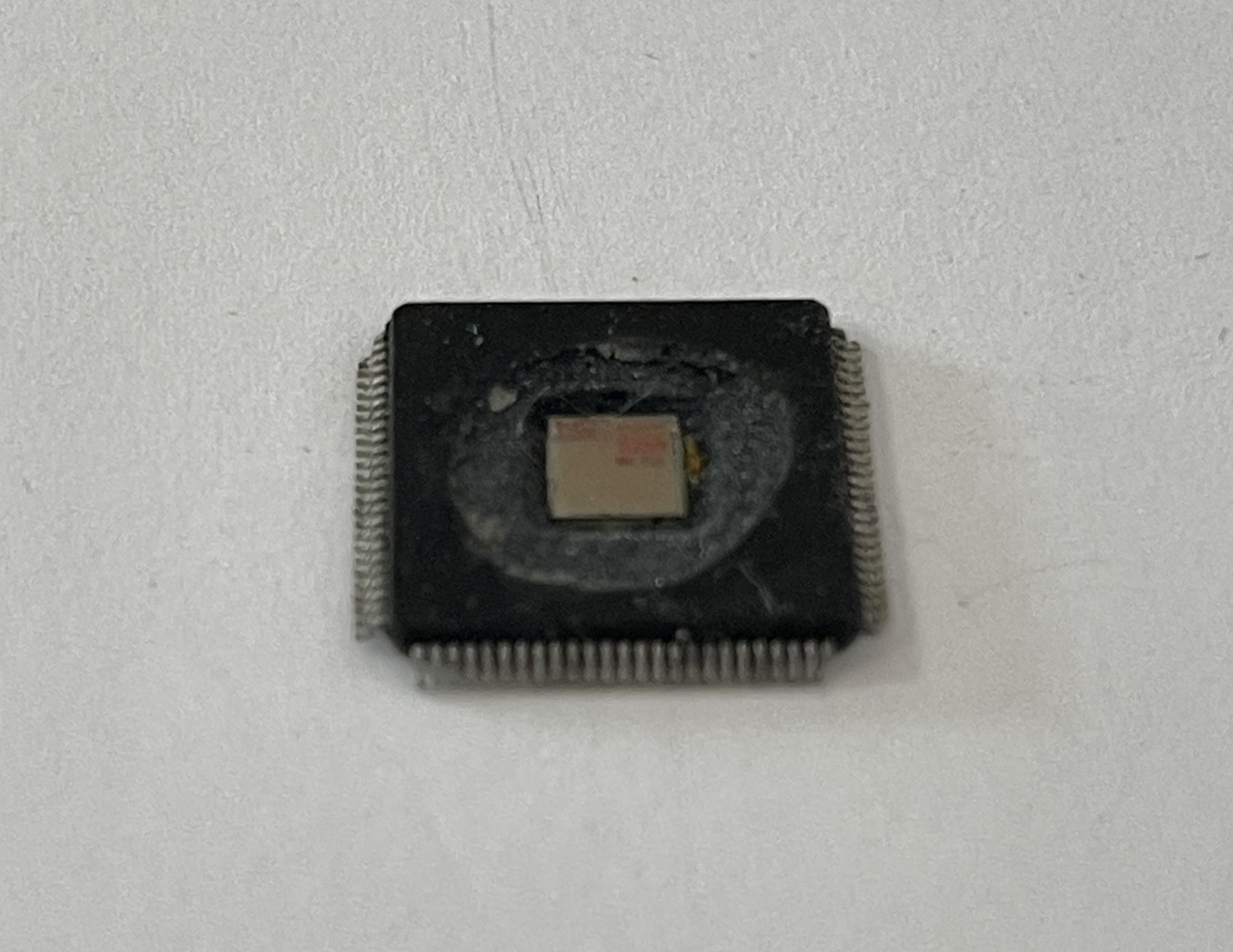

Unlock Protected MCU STM32F051R8 Flash and copy memory firmware to new stm32f051r8 microcontroller, fuse bit of microprocessor stm32f051r8 will be broken by focus ion beam technique;

All the I/Os used as inputs with pull-up generate current consumption when the pin is externally held low. The value of this current consumption can be simply computed by using the pull-up/pull-down resistors values given in Table 48: I/O static characteristics.

For the output pins, any external pull-down or external load must also be considered to estimate the current consumption. Additional I/O current consumption is due to I/Os configured as inputs if an intermediate voltage level is externally applied after cracking arm microcontroller stm32f051k4 flash memory.

This current consumption is caused by the input Schmitt trigger circuits used to discriminate the input value. Unless this specific configuration is required by the application, this supply current consumption can be avoided by configuring these I/Os in analog mode. This is notably the case of ADC input pins which should be configured as analog inputs.

Any floating input pin can also settle to an intermediate voltage level or switch inadvertently, as a result of external electromagnetic noise. To avoid current consumption related to floating pins, they must either be configured in analog mode, or forced internally to a definite digital value in the process of unlocking stm8l051c6 microcontroller flash memory firmware. This can be done either by using pull-up/down resistors or by configuring the pins in output mode.
