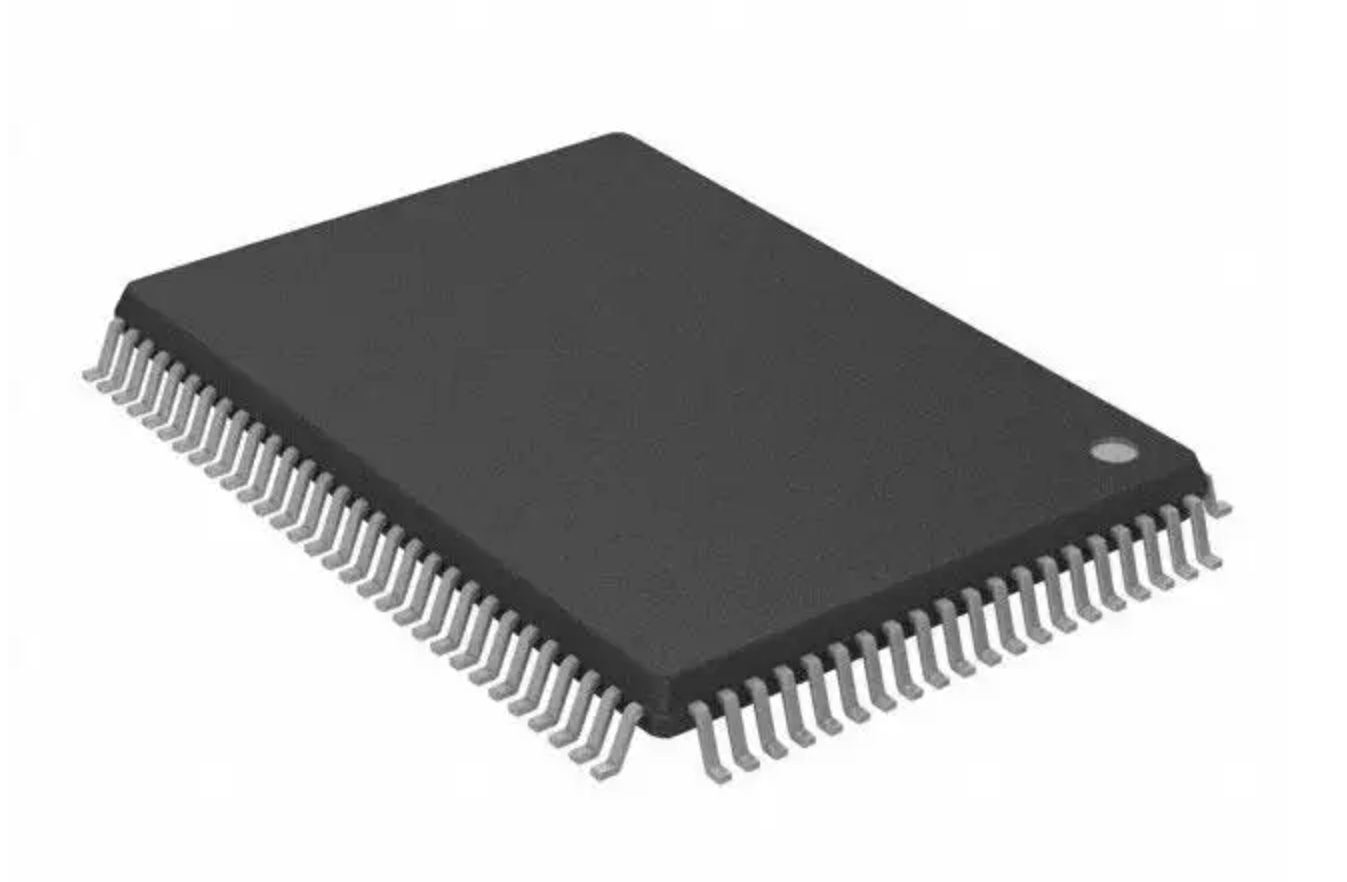

Unlock Fujitsu MB90F342ESPF-GS Microcontroller IC Flash Memory
Unlock Fujitsu MB90F342ESPF-GS Microcontroller IC Flash Memory and clone the embedded firmware from MB90F342ESPF-GS MCU memory in the format of binary or heximal after attack MB90F342ESPF-GS microprocessor’s protective system;
· I/O ports
- General-purpose input/output port (CMOS output)
- 80 ports (for devices without an S suffix in the part number – i.e. devices that support the sub clock)
- 82 ports (for devices with an S suffix in the part number – i.e. devices that do not support the sub clock)
· 8/10-bit A/D converter : 16 channels
24 channels (only for devices with a C suffix in the part number)
- Resolution is selectable between 8-bit and 10-bit.
- Activation by external trigger input is allowed.
- Conversion time : 3 ms (at 24-MHz machine clock, including sampling time)
· Program patch function
Detects address matches against 6 address pointers
· Timer
- Time-base timer, watch timer, watchdog timer : 1 channel
- 8/16-bit PPG timer : 8-bit ´ 16 channels, or 16-bit ´ 8 channels
- 16-bit reload timer : 4 channels
- 16-bit input/output timer
- 16-bit free-run timer : 2 channels
(FRT0 : ICU 0/1/2/3, OCU 0/1/2/3, FRT1 : ICU 4/5/6/7, OCU 4/5/6/7)
- 16-bit input capture: (ICU): 8 channels
- 16-bit output compare: (OCU): 8 channels
· Full-CAN controller*2
- Up to 2 channels
- Compliant with Ver2.0A and Ver2.0B CAN specifications
- 16 built-in message buffers
- CAN wake-up function
· Low power consumption (standby) mode
- Sleep mode (a mode that halts CPU operating clock)
- Timebase timer mode (a mode where only the oscillation clock, sub clock, timebase timer and watch timer operate)
- Watch mode (a mode that operates sub clock and clock timer only)
- Stop mode (a mode that stops oscillation clock and sub clock)
- CPU intermittent operation mode
· Technology
- 0.35 mm CMOS technology
