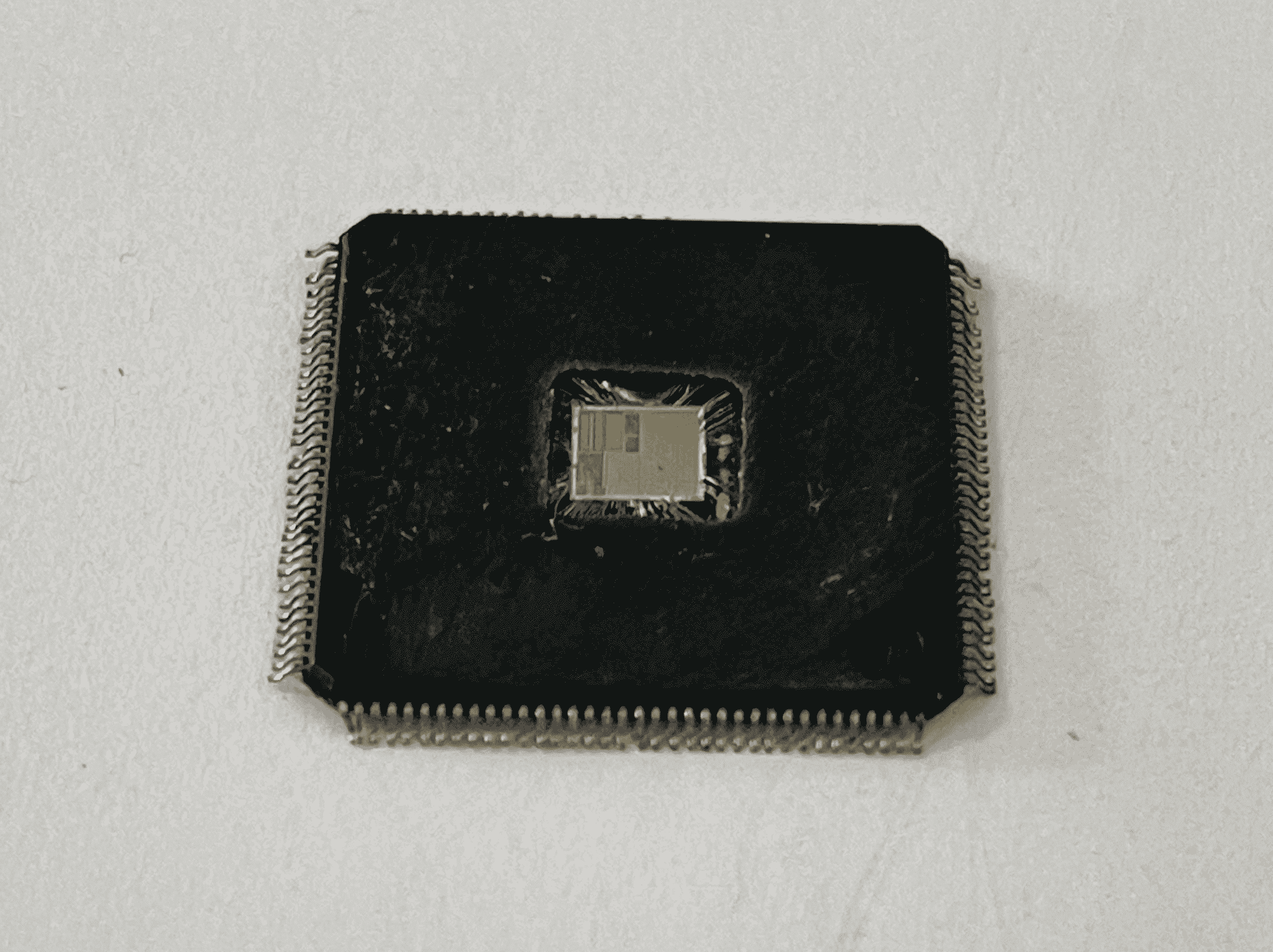

Unlock Altera CPLD EPM7128AETC100 Memory and recover embedded program pof file from epm7128aetc100 cpld chipset, engineer can copy cpld epm7128aetc100 eeprom firmware to new altera cpld chip;

The acronym of the CPLD is “Complex programmable logic devices”, it is a one kind of integrated circuit that application designers design to implement digital hardware like mobile phones.

These can handle knowingly higher designs than SPLDs (simple programmable logic devices), but offer less logic than FPGAs (field programmable gate arrays).CPLDs include numerous logic blocks; each of the blocks includes 8-16 macrocells.

Because every logic block executes a specific function, all of the macrocells in a logic block are fully connected. Depending upon the use, these blocks may or may not be connected to one another.

Most CPLDs (complex programmable logic devices) have macrocells with a sum of logic function and an elective FF (flip-flop). Depending on the chip, the combinatorial logic function supports from 4 to 16 product terms with inclusive fan-in.

CPLDs also differ in terms of shift registers and logic gates. Due to this reason, CPLDs with a huge number of logic gates may be used instead of FPGAs. Another CPLD specification signifies the number of product terms that a macrocell can accomplish. Product terms are the product of digital signals that execute a specific logic function when attacking altera epm7128aetc100 cpld chip.

CPLDs are available in several IC package forms and logic families. CPLDs also differ in terms of supply voltage, operating current, standby current and power dissipation.

In addition, these are obtainable with various amounts of memory and various kinds of memory support. Usually, memory is expressed in bits/ megabits to unlock altera cpld epm7128buc processor. Memory support consists of ROM, RAM and dual-port RAM. It also comprises of CAM (content addressable memory) as well as FIFO (first-in, first-out) memory and LIFO (last-in, last-out) memory.
