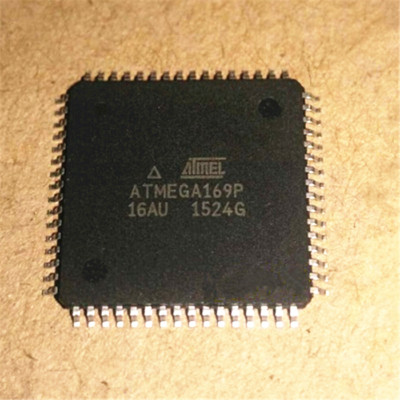

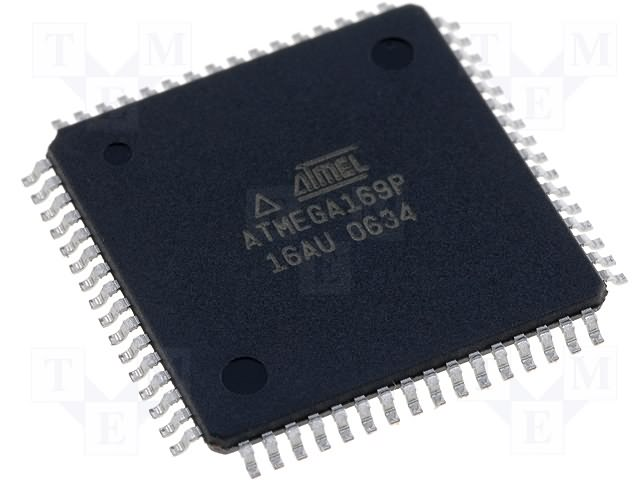

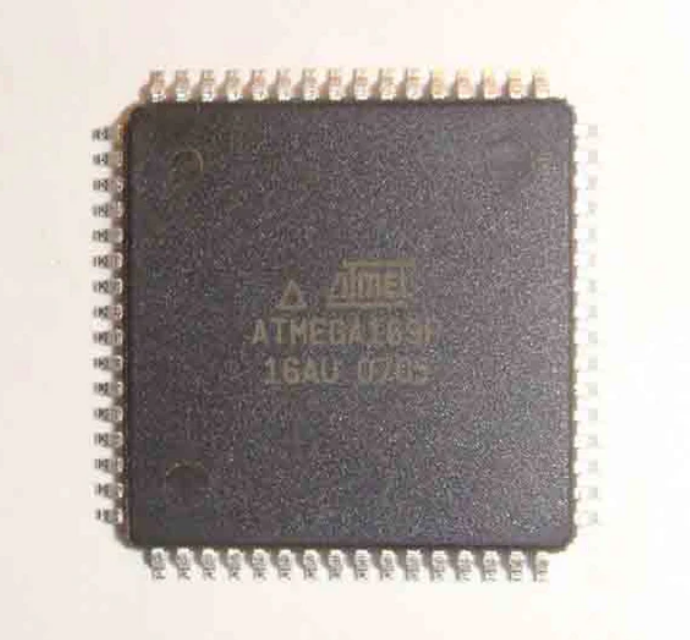

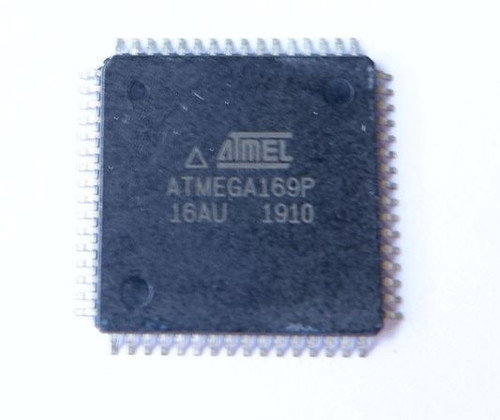

Restore AVR Microcontroller ATMEL ATMEGA169P

We can Restore AVR Microcontroller ATMEL ATMEGA169P, please view the IC chip features for your reference:

Features

· High Performance, Low Power AVR® 8-Bit Microcontroller

· Advanced RISC Architecture

– 130 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

On-Chip 2-cycle Multiplier

Non-volatile Program and Data Memories

– 16K bytes of In-System Self-Programmable Flash

Endurance: 10,000 Write/Erase Cycles

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

512 bytes EEPROM

Endurance: 100,000 Write/Erase Cycles

– 1K byte Internal SRAM

– Programming Lock for Software Security

JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– 4 x 25 Segment LCD Driver

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Universal Serial Interface with Start Condition Detector

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby

I/O and Packages

54 Programmable I/O Lines

– 64-lead TQFP and 64-pad QFN/MLF

Speed Grade:

– ATmega169PV: 0 – 4 MHz @ 1.8 – 5.5V, 0 – 8 MHz @ 2.7 – 5.5V

– ATmega169P: 0 – 8 MHz @ 2.7 – 5.5V, 0 – 16 MHz @ 4.5 – 5.5V

Temperature range:

– -40°C to 85°C Industrial

Ultra-Low Power Consumption

– Active Mode:

1 MHz, 1.8V: 330 µA

32 kHz, 1.8V: 10 µA (including Oscillator)

32 kHz, 1.8V: 25 µA (including Oscillator and LCD)

– Power-down Mode:

0.1 µA at 1.8V

– Power-save Mode:

0.6 µA at 1.8V(Including 32 kHz RTC)
