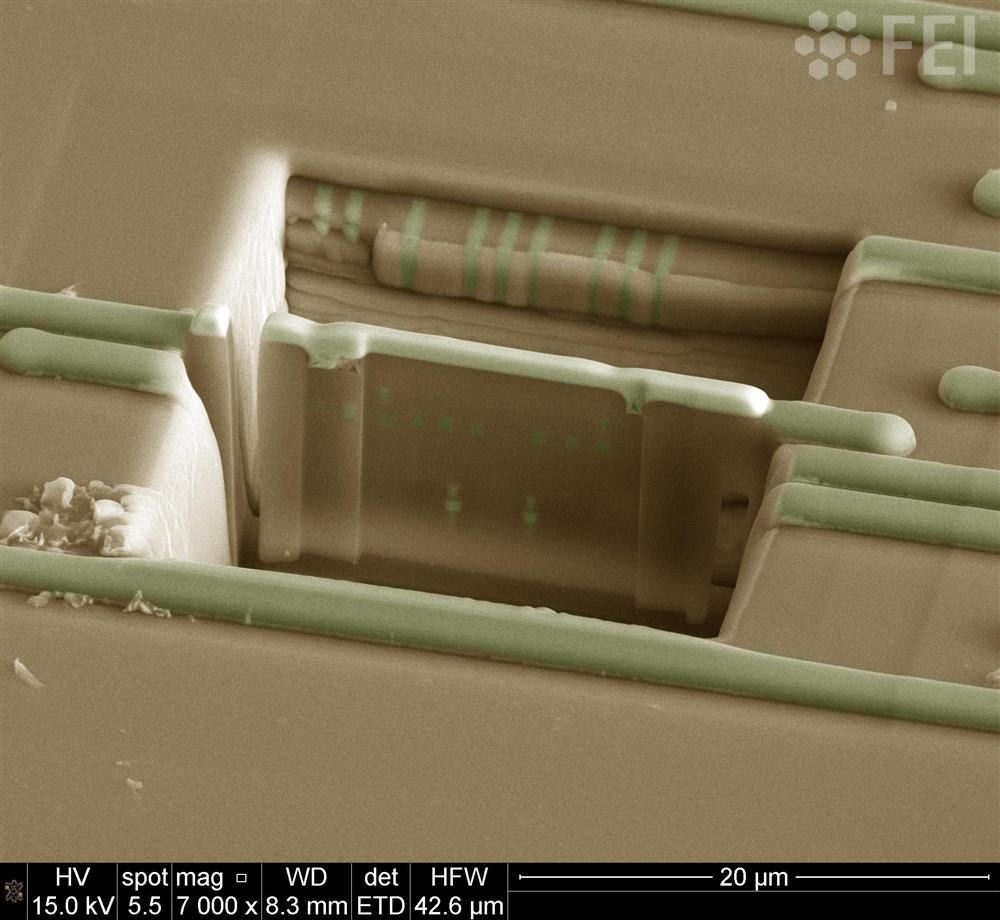

Read MCU PIC18F2585 unlocked memory include flash and eeprom, the process start from break MCU memory then extract heximal out from its memory, and then copy the firmware to blank Microcontroller;
Power Managed Modes:
Run: CPU on, peripherals on
Idle: CPU off, peripherals on
Sleep: CPU off, peripherals off
Idle mode currents down to 5.8 ìA typical
Sleep mode currents down to 0.1 ìA typical
Timer1 Oscillator: 1.1 ìA, 32 kHz, 2V
Watchdog Timer: 2.1 ìA
Two-Speed Oscillator Start-up
Flexible Oscillator Structure:
· Four Crystal modes, up to 40 MHz
· 4x Phase Lock Loop (PLL) – available for crystal and internal oscillators
· Two External RC modes, up to 4 MHz
· Two External Clock modes, up to 40 MHz
· Internal oscillator block:
– 8 user selectable frequencies, from 31 kHz to 8 MHz
– Provides a complete range of clock speeds, from 31 kHz to 32 MHz when used with PLL
– User tunable to compensate for frequency drift
· Secondary oscillator using Timer1 @ 32 kHz
· Fail-Safe Clock Monitor
– Allows for safe shutdown if peripheral clock stops
Special Microcontroller Features:
· C compiler optimized architecture with optional extended instruction set
· 100,000 erase/write cycle Enhanced Flash program memory typical
· 1,000,000 erase/write cycle Data EEPROM memory typical
· Flash/Data EEPROM Retention: > 40 years
· Self-programmable under software control
· Priority levels for interrupts
· 8 x 8 Single Cycle Hardware Multiplier
· Extended Watchdog Timer (WDT):
– Programmable period from 41 ms to 131s
· Single-Supply 5V In-Circuit Serial
Programming™ (ICSP™) via two pins
· In-Circuit Debug (ICD) via two pins
· Wide operating voltage range: 2.0V to 5.5V
High current sink/source 25 mA/25 mA
Three external interrupts
One Capture/Compare/PWM (CCP1) module
Enhanced Capture/Compare/PWM (ECCP1) module (40/44-pin devices only):
– One, two or four PWM outputs
– Selectable polarity
– Programmable dead time
– Auto-Shutdown and Auto-Restart
Master Synchronous Serial Port (MSSP) module supporting 3-wire SPI (all 4 modes) and I2C™
Master and Slave modes
Enhanced Addressable USART module:
– Supports RS-485, RS-232 and LIN 1.3
– RS-232 operation using internal oscillator block (no external crystal required)
– Auto-Wake-up on Start bit
– Auto-Baud Detect
10-bit, up to 11-channel Analog-to-Digital Converter module (A/D), up to 100 Ksps
– Auto-acquisition capability
– Conversion available during Sleep
Dual analog comparators with input multiplexing
ECAN Module Features:
· Message bit rates up to 1 Mbps
· Conforms to CAN 2.0B ACTIVE Specification
· Fully backward compatible with PIC18XXX8 CAN modules
· Three modes of operation:
– Legacy, Enhanced Legacy, FIFO
· Three dedicated transmit buffers with prioritization
· Two dedicated receive buffers
· Six programmable receive/transmit buffers
· Three full 29-bit acceptance masks
· 16 full 29-bit acceptance filters w/ dynamic association
· DeviceNet™ data byte filter support
· Automatic remote frame handling
· Advanced error management features
