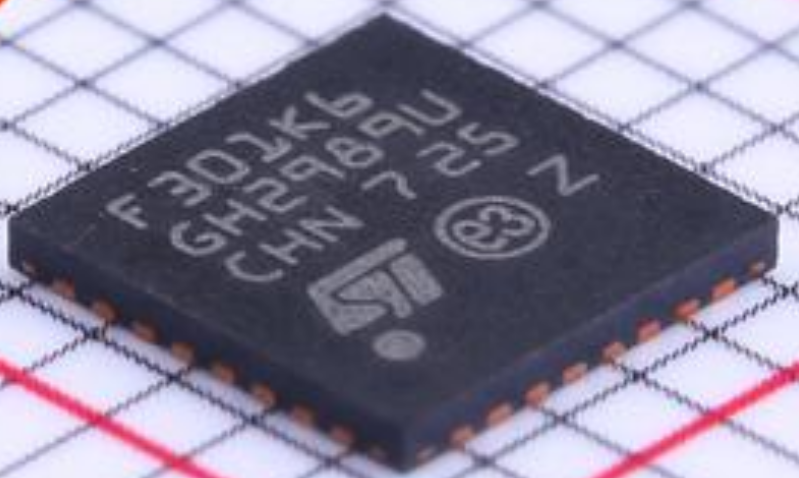

Protected STM32F301K6 Microcomputer Flash Program Unlocking will enable engineer to dump microcontroller stm32f301k6 locked code from its flash memory, and then copy firmware to new microprocessor stm32f301k6.

The STM32F301x6/8 devices embed a nested vectored interrupt controller (NVIC) able to handle up to 60 maskable interrupt channels and 16 priority levels.

The NVIC benefits are the following:

• Closely coupled NVIC gives low latency interrupt processing
  • Interrupt entry vector table address passed directly to the core
  • Closely coupled NVIC core interface
  • Allows early processing of interrupts
  • Processing of late arriving higher priority interrupts
  • Support for tail chaining
  • Processor state automatically saved
  • Interrupt entry restored on interrupt exit with no instruction overhead

The NVIC hardware block provides flexible interrupt management features with minimal interrupt latency.

An analog-to-digital converter, with selectable resolution between 12 and 6 bit, is embedded in the STM32F301x6/8 family devices. The ADC has up to 15 external channels performing conversions in single-shot or scan modes to decoding stm32f031k4 mcu flash content.

Channels can be configured to be either single- ended input or differential input. In scan mode, automatic conversion is performed on a selected group of analog inputs.

Additional logic functions embedded in the ADC interface allow:

• Simultaneous sample and hold
• Single-shunt phase current reading techniques. The ADC can be served by the DMA controller.

Three analog watchdogs are available. The analog watchdog feature allows very precise monitoring of the converted voltage of one, some or all selected channels.

An interrupt is generated when the converted voltage is outside the programmed thresholds. The events generated by the general-purpose timers (TIMx) and the advanced-control timer (TIM1) can be internally connected to the ADC start trigger and injection trigger in order to cracking stm32f038f6 microprocessor flash memory, respectively, to allow the application to synchronize A/D conversion and timers.
