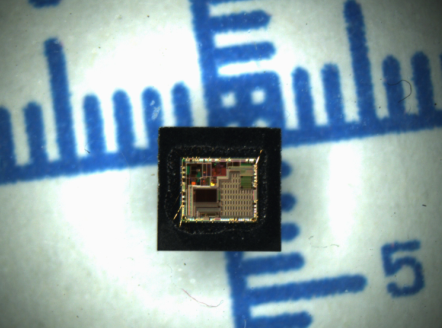

MCU STM32F103T6 Flash Firmware Extraction will help engineer to restore microcontroller stm32f103t6 flash memory program out, then copy heximal file to new stm32f103t6 processor;

The advanced-control timer (TIM1) can be seen as a three-phase PWM multiplexed on 6 channels. It has complementary PWM outputs with programmable inserted dead times. It can also be seen as a complete general-purpose timer. The 4 independent channels can be used for:

• Input capture
  • Output compare
  • PWM generation (edge or center-aligned modes)
  • One-pulse mode output

If configured as a standard 16-bit timer, it has the same features as the TIMx timer. If configured as the 16-bit PWM generator, it has full modulation capability (0-100%).

The counter can be frozen in debug mode. Many features are shared with those of the standard timers which have the same architecture. The advanced control timer can therefore work together with the other timers by reading locked stm32f105vb microcontroller flash data via the Timer Link feature for synchronization or event chaining.

The independent watchdog is based on an 8-bit prescaler and 12-bit downcounter with user- defined refresh window. It is clocked from an independent 40 kHz internal RC and as it operates independently from the main clock, it can operate in Stop and Standby modes.

It can be used either as a watchdog to reset the device when a problem occurs, or as a free running timer for application timeout management and copy protected stm32f105rb mcu heximal. It is hardware or software configurable through the option bytes. The counter can be frozen in debug mode.
