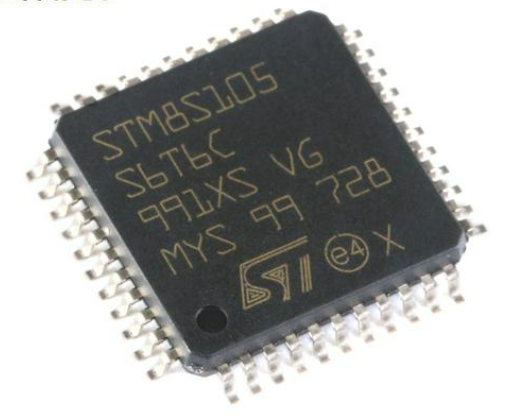

Locked Microcontroller STM8S105S6T6 Memory Heximal Cloning needs to break mcu stm8s105s6 security fuse bit and copy embedded flash binary from stmicro MCU STM8S105S6;

Central processing unit STM8

The 8-bit STM8 core is designed for code efficiency and performance.

It contains 6 internal registers which are directly addressable in each execution context, 20 addressing modes including indexed indirect and relative addressing and 80 instructions with similar operation as clone stm8s105k4 mcu chip embedded firmware.

Architecture and registers

Harvard architecture,

3-stage pipeline,

32-bit wide program memory bus – single cycle fetching for most instructions,

X and Y 16-bit index registers – enabling indexed addressing modes with or without offset and read-modify-write type data manipulations,

8-bit accumulator,

24-bit program counter – 16-Mbyte linear memory space,

16-bit stack pointer – access to a 64 K-level stack,

8-bit condition code register – 7 condition flags for the result of the last instruction.

Addressing

20 addressing modes,

Indexed indirect addressing mode for look-up tables located anywhere in the address space,

Stack pointer relative addressing mode for local variables and parameter passing to unlock stm8s103f3 micro-processor flash memory.

Instruction set

80 instructions with 2-byte average instruction size,

Standard data movement and logic/arithmetic functions,

8-bit by 8-bit multiplication,

16-bit by 8-bit and 16-bit by 16-bit division,

Bit manipulation,

Data transfer between stack and accumulator (push/pop) with direct stack access,

Data transfer using the X and Y registers or direct memory-to-memory transfers.
