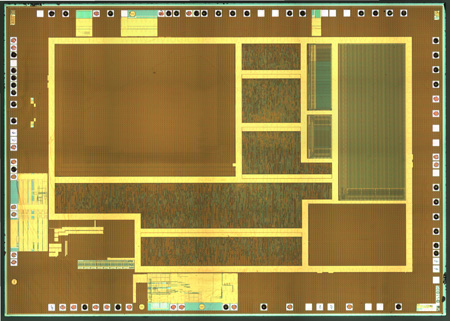

Hack Microcomputer IC M306N0FG Mitsubishi SINGLE-CHIP 16-BIT CMOS
The M16C/6NT group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core which is the critical step for Hack Microcomputer IC M306N0FG Mitsubishi SINGLE-CHIP 16-BIT CMOS and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency.
Hack Microcomputer IC M306N0FG Mitsubishi SINGLE-CHIP 16-BIT CMOS
With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.
Being equipped with two CAN (Controller Area Network) modules, the microcomputer is suited to drive automotive and industrial control systems. The CAN modules comply with the 2.0B specification.
Features
· Memory capacity …………………………… ROM 128K/256K bytes RAM 5K/10K bytes
· Shortest instruction execution time …… 62.5 ns (f(XIN) = 16MHz, 1/1 prescaler, without software wait) 100 ns (f(XIN) = 20MHz, 1/2 prescaler, without software wait)
· Supply voltage ………………………………. 4.2 to 5.5V (f(XIN) = 16MHz, 1/1 prescaler, without software wait) 4.2 to 5.5V (f(XIN) = 20MHz, 1/2 prescaler, without software wait)
· Low power consumption …………………. TBD (f(XIN) = 16MHz, 1/1 prescaler, without software wait) TBD (f(XIN) = 20MHz, 1/2 prescaler, without software wait)
· Interrupts ……………………………………… 29 internal and 9 external interrupt sources, 4 software interrupt sources; 7 priority levels (including key input interrupt)
· Multifunction 16-bit timer ………………… 5 output timers + 6 input timers
· Serial I/O ……………………………………… 4 channels (3 for UART or clock synchronous, 1 for clock synchronous)
· DMAC …………………………………………. 2 channels (trigger: 23 sources)
· CAN module …………………………………. 2 channels, 2.0B active
· A-D converter ……………………………….. 10 bits X 26 analog inputs
· D-A converter ……………………………….. 8 bits X 2 analog outputs
· CRC calculation circuit …………………… 1 circuit
· Watchdog timer …………………………….. 1 15-bit timer
· Programmable I/O …………………………. 87 lines
· Input port ……………………………………… 1 line (P85 shared with NMI pin)
· Chip select output ………………………….. 4 lines
Specifications written in this manual are believed to be accurate, but are not guaranteed to be entirely free of error. Specifications in this manual may be changed for functional or performance improvements.
· Memory expansion ………………………… Available (to a maximum of 1M bytes)
· Clock generating circuit ………………….. 2 built-in clock generation circuits (built-in feedback resistor, and external ceramic or quartz oscillator)
