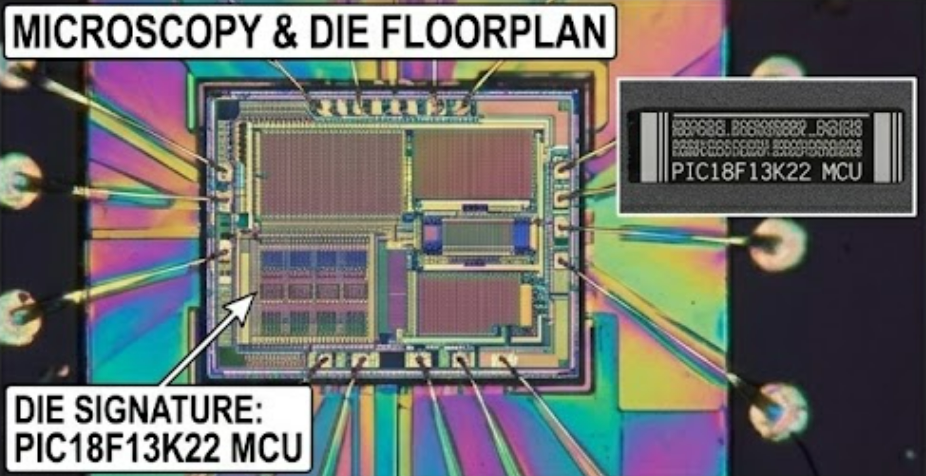

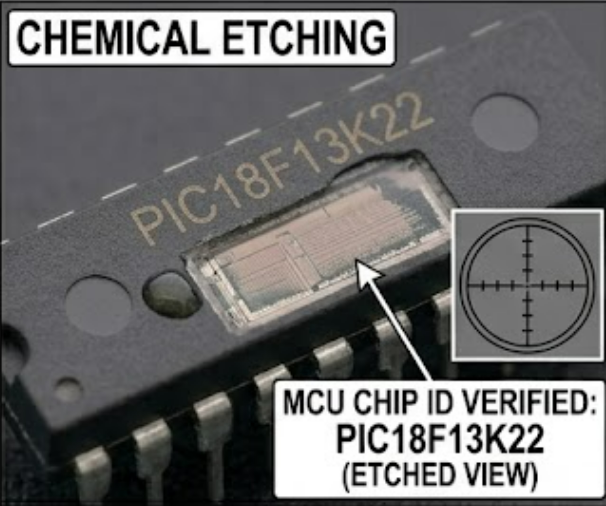

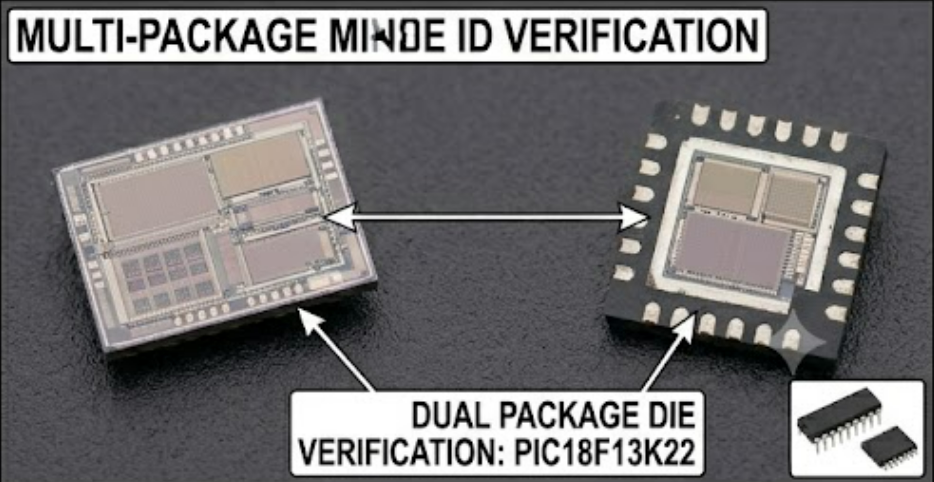

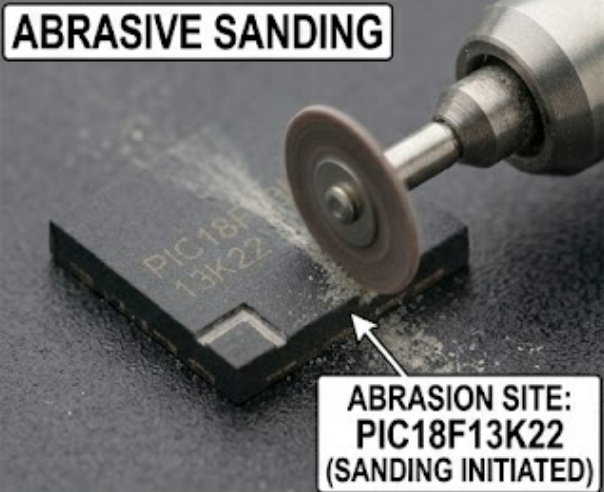

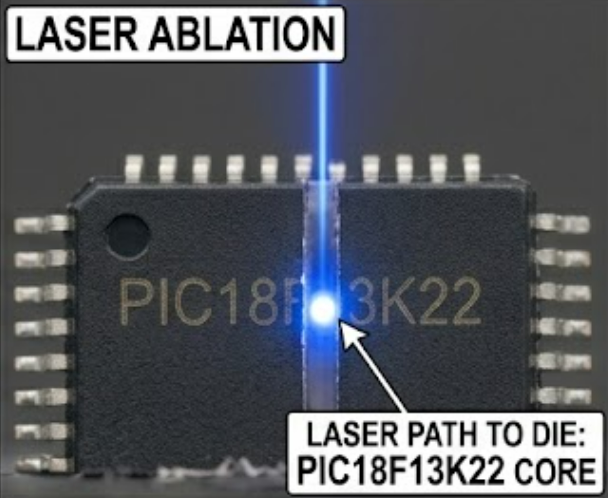

Decode MCU Chip Microchip PIC18F13K22 flash memory starts from attack microcontroller pic18f13k22 flash memory and extract embedded firmware from mcu flash memory;

High-Performance RISC CPU:

· C Compiler Optimized Architecture:

– Optional extended instruction set designed to optimize re-entrant code

· 256 bytes Data EEPROM

· Up to 16 Kbytes Linear Program Memory

Addressing

· Up to 512 bytes Linear Data Memory Addressing

· Up to 16 MIPS Operation

· 16-bit Wide Instructions, 8-bit Wide Data Path

· Priority Levels for Interrupts

· 31-Level, Software Accessible Hardware Stack

· 8 x 8 Single-Cycle Hardware Multiplier

Flexible Oscillator Structure:

· Precision 16 MHz Internal Oscillator Block:

Factory calibrated to ± 1%

– Software selectable frequencies range of 31 kHz to 16 MHz

– 64 MHz performance available using PLL – no external components required

· Four Crystal modes up to 64 MHz

· Two External Clock modes up to 64 MHz

· 4X Phase Lock Loop (PLL)

· Secondary Oscillator using Timer1 @ 32 kHz

· Fail-Safe Clock Monitor

– Allows for safe shutdown if peripheral clock stops

· Two-Speed Oscillator Start-up

Special Microcontroller Features:

Extreme Low-Power Management

PIC18LF1XK22 with nanoWatt XLP:

· Sleep mode: 34 nA

· Watchdog Timer: 460 nA

· Timer1 Oscillator: 650 nA @ 32 kHz

Analog Features:

· Analog-to-Digital Converter (ADC) module

– 10-bit resolution, 12 channels

– Auto acquisition capability

Conversion available during Sleep

· Analog Comparator module:

– Two rail-to-rail analog comparators

– Independent input multiplexing

– Inputs and outputs externally accessible

· Voltage Reference module:

– Programmable (% of VDD), 16 steps

– Two 16-level voltage ranges using VREF pins

– Programmable Fixed Voltage Reference (FVR), 3 levels

Peripheral Highlights:

· 17 I/O Pins and 1 Input-only Pin:

– High current sink/source 25 mA/25 mA

– Programmable weak pull-ups

– Programmable interrupt-on- change

– Three external interrupt pins

· Four Timer modules:

– 3 16-bit timers/counters with prescaler

– 1 8-bit timer/counter with 8-bit period register, prescaler and postscaler

Full 5.5V Operation – PIC18F1XK22

1.8V-3.6V Operation – PIC18LF1XK22

Self-reprogrammable under Software Control

Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

Programmable Brown-out Reset (BOR)

Extended Watchdog Timer (WDT):

– Programmable period from 4ms to 131s

Programmable Code Protection

Decode MCU Chip Microchip PIC18F13K22 flash memory starts from attack microcontroller pic18f13k22 flash memory and extract embedded firmware from mcu flash memory
Decode MCU Chip Microchip PIC18F13K22 flash memory starts from attack microcontroller pic18f13k22 flash memory and extract embedded firmware from mcu flash memory

In-Circuit Serial Programming™ (ICSP™) via two pins

In-Circuit Debug via Two Pins

– Dedicated, low-power Timer1 oscillator

· Enhanced Capture/Compare/PWM (ECCP) module:

– One, two or four PWM outputs

– Selectable polarity

– Programmable dead time

– Auto-shutdown and Auto-restart

– PWM output steering control

· Master Synchronous Serial Port (MSSP) module

– 3-wire SPI (supports all 4 SPI modes)

– I2C™ Master and Slave modes (Slave mode address masking)

· Enhanced Universal Synchronous Asynchronous Receiver Transmitter module (EUSART)

– Supports RS-232, RS-485 and LIN 2.0

– Auto-Baud Detect

– Auto Wake-up on Break
