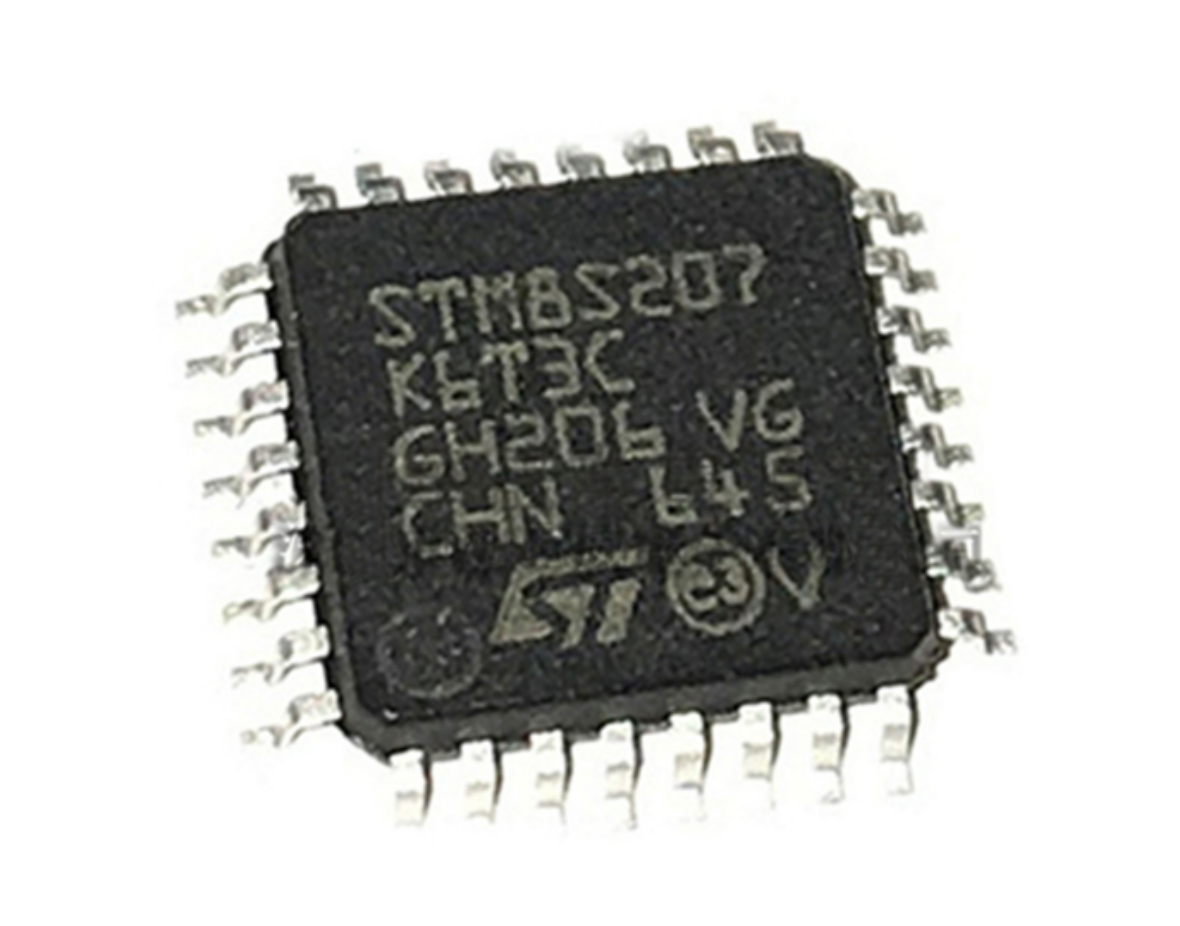

Crack STMicrocontroller STM8S207K6 Locked Flash Memory after break the security fuse bit protection over mcu stm8s207k6 and then extract embedded firmware from MCU chip;

This is a high-end timer designed for a wide range of control applications. With its complementary outputs, dead-time control and center-aligned PWM capability, the field of applications is extended to motor control, lighting and half-bridge driver

16-bit up, down and up/down autoreload counter with 16-bit prescaler

Four independent capture/compare channels (CAPCOM) configurable as input capture, output compare, PWM generation (edge and center aligned mode) and single pulse mode output

Synchronization module to control the timer with external signals

Break input to force the timer outputs into a defined state

Three complementary outputs with adjustable dead time

Encoder mode

Interrupt sources: 3 x input capture/output compare, 1 x overflow/update, 1 x break

16-bit autoreload (AR) up-counter

15-bit prescaler adjustable to fixed power of 2 ratios 1…32768

Timers with 3 or 2 individually configurable capture/compare channels

PWM mode

Interrupt sources: 2 or 3 x input capture/output compare, 1 x overflow/update
