As the brain of a microcontroller, central processing unit play an extremely important role in the performance of ST7FMC1K2BC, so in the process of Crack ST CPU ST7FMC1K2BC Internal Memory, there is a lot of connection with it, hereby we would like to talk about some details about this CPU, start from STACK POINTER:

The Stack Pointer is a 16-bit register which is al- ways pointing to the next free location in the stack. It is then decremented after data has been pushed onto the stack and incremented before data is popped from the stack (see BELOW Figure).

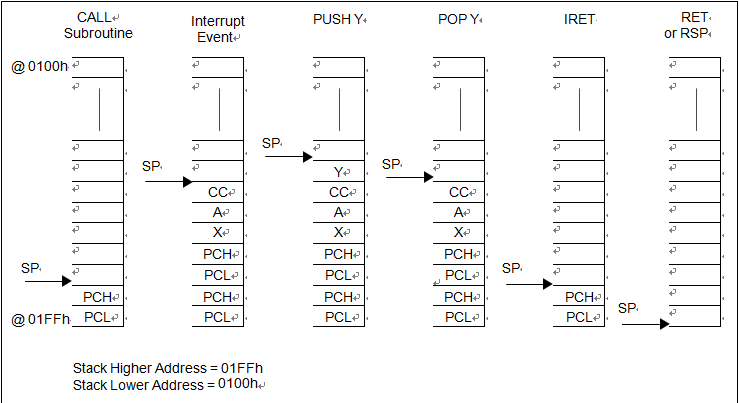

Stack Manipulation Example

Since the stack is 256 bytes deep, the 8 most sig- nificant bits are forced by hardware. Following an MCU Reset, or after a Reset Stack Pointer instruc- tion (RSP), the Stack Pointer contains its reset value (the SP7 to SP0 bits are set) which is the stack higher address.

The device includes a range of utility features for securing the application in critical situations (for example in case of a power brown-out), and reducing the number of external components. An overview is shown in below Figure. For more details, refer to dedicated parametric section.

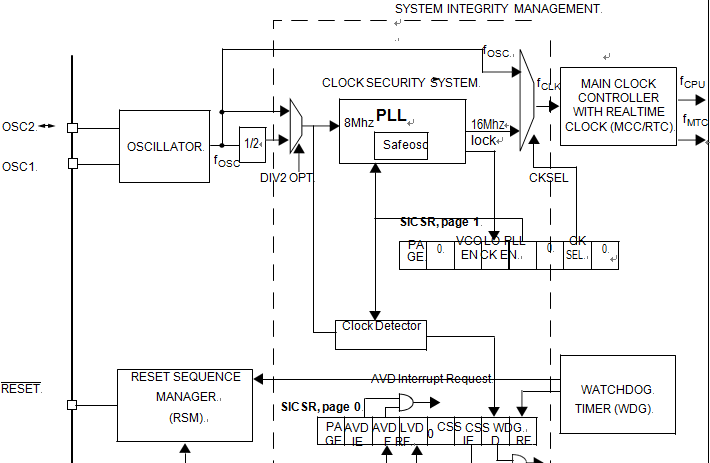

Clock, Reset and Supply Block Diagram
