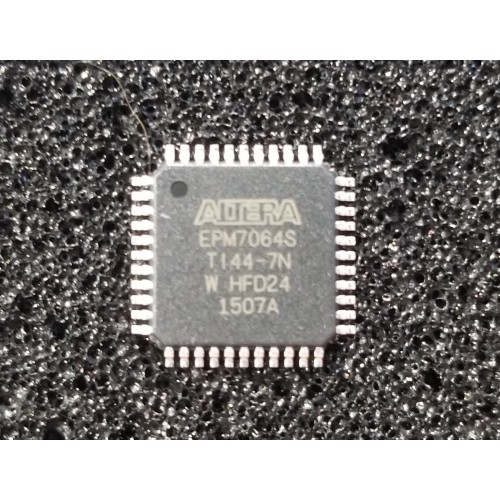

Copy Altera CPLD EPM7064STI44-7N Binary Program from its eeprom memory after attacking epm7064sti44 eeprom memory protection;

MAX 7000A devices are fully tested. Complete testing of each

programmable EEPROM bit and all internal logic elements ensures 100% programming yield. AC test measurements are taken under conditions equivalent to those shown in below Figure. Test patterns can be used and then erased during early stages of the production flow.

Power supply transients can affect AC measurements. Simultaneous transitions of multiple outputs should be avoided for accurate measurement to crack epm7064aetc100 chip memory cpld program. Threshold tests must not be performed under AC conditions. Large-amplitude, fast-ground- current transients normally occur as the device outputs discharge the load capacitances.

When these transients flow through the parasitic inductance between the device ground pin and the test system ground, significant reductions in observable noise immunity can result only after the epm7064aetc100 cpld chip memory has been cracked.

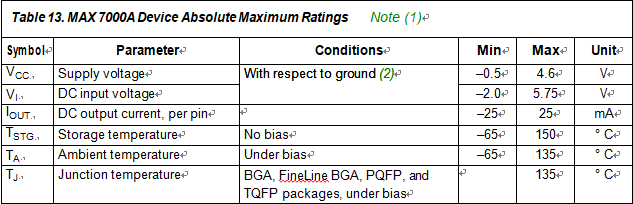

Numbers in brackets are for 2.5-V outputs. Numbers without brackets are for 3.3-V outputs. Below Tables 13 through 16 provide information on absolute maximum ratings, recommended operating conditions, operating conditions, and capacitance for MAX 7000A devices.
