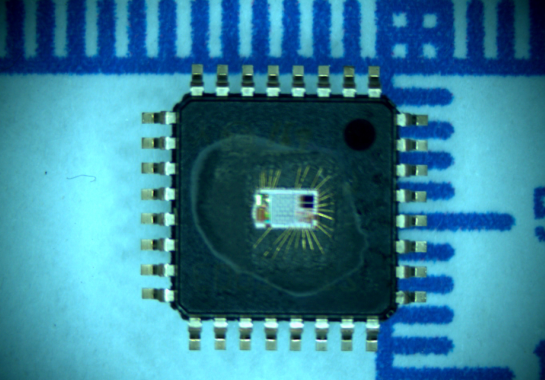

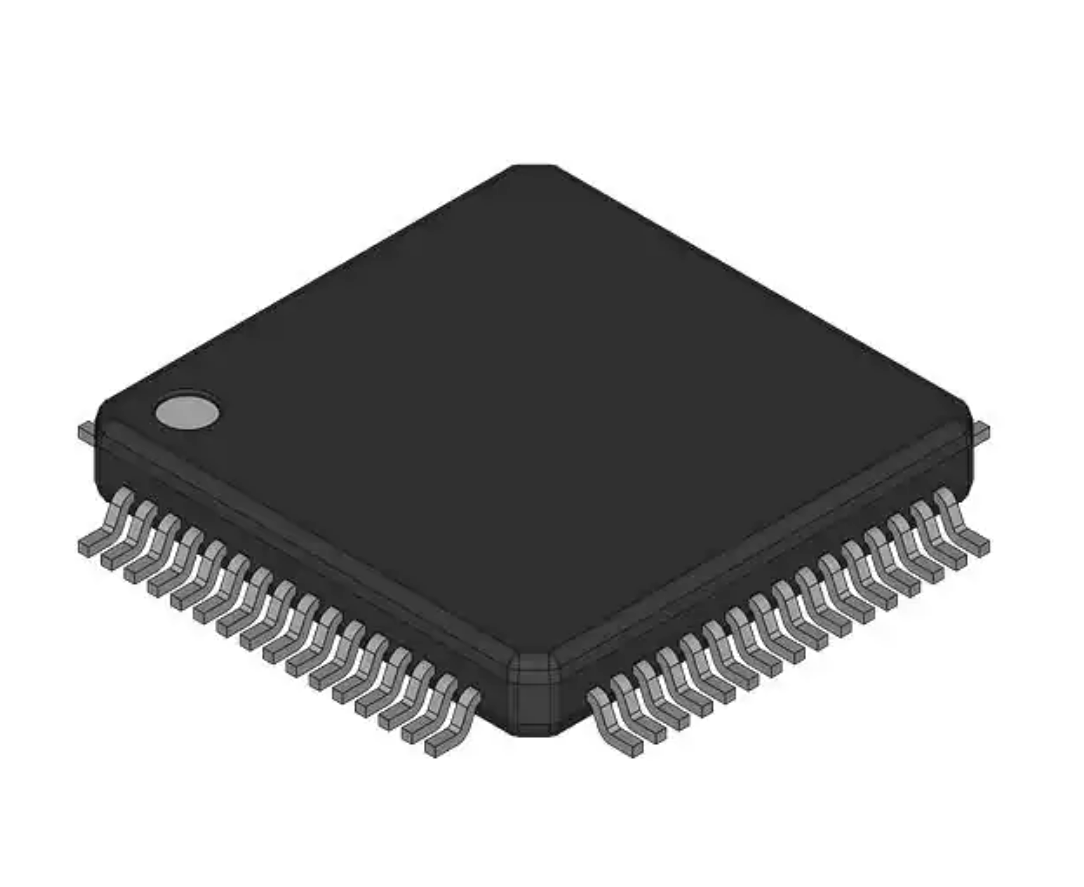

Clone Renesas R5F2L36AANFP Locked MCU Flash Binary and copy embedded firmware to new microcontroller R5F2L36AANFP memory, the original microprocessor R5F2L36AANFP security fuse bit will be disabled by focus ion beam;

Special function registers (SFRs) are allocated addresses 00000h to 002FFh. The peripheral function control registers are allocated here. All addresses within the SFR, which have nothing allocated are reserved for future use and cannot be accessed by users.

VCC = AVCC = 2.7 to 5.5 V at Topr = -20 to 85 °C / -40 to 85 °C, unless otherwise specified. If f1 exceeds 10 MHz, divide f1 and ensure the A/D operating clock frequency (fAD) is 10 MHz or below.

If AVcc is less than 4.2 V, divide f1 and ensure the A/D operating clock frequency (fAD) is f1/2 or below. When the analog input voltage is over the reference voltage to crack microcontroller r5f211a2 flash memory, the A/D conversion result will be 3FFh in 10-bit mode and FFh in 8-bit mode.

1. VCC = 2.7 to 5.5 V at Topr = 0 to 60 °C, unless otherwise specified.
2. Definition of programming/erasure endurance

The programming and erasure endurance is defined on a per-block basis.

If the programming and erasure endurance is n (n = 100 or 10,000), each block can be erased n times. For example, if 1,024 1-byte writes are performed to block A to copy r5f21324cn renesas microcontroller program, a 1 Kbyte block, and then the block is erased, the programming/erasure endurance still stands at one. However, the same address must not be programmed more than once per erase operation (overwriting prohibited).
