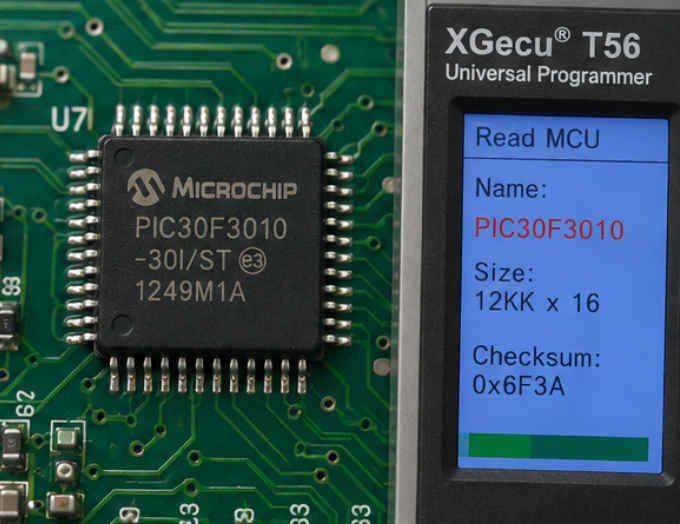

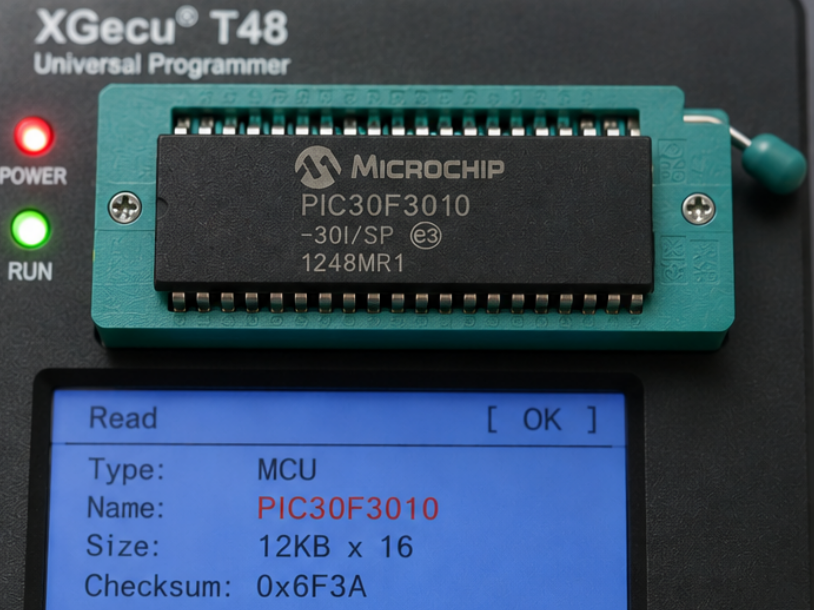

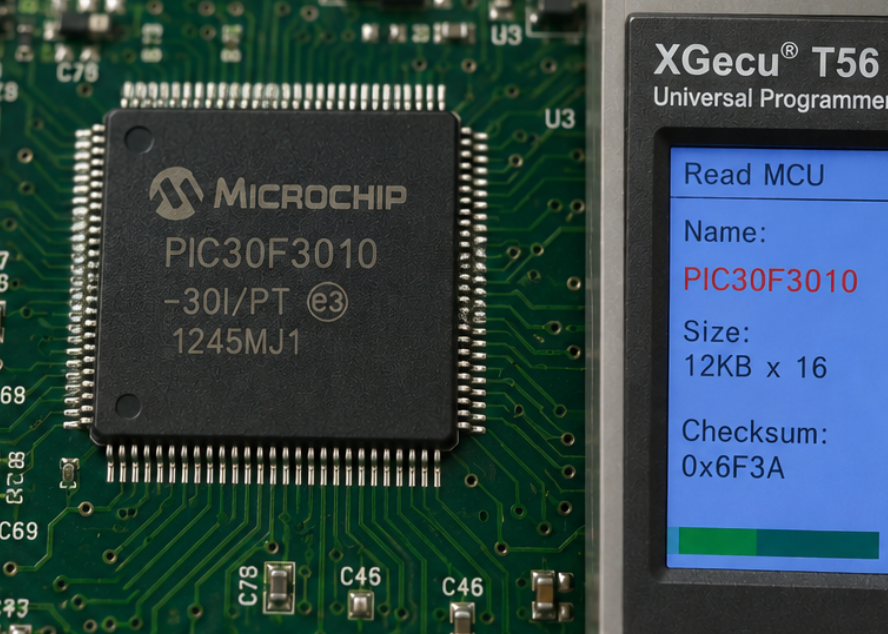

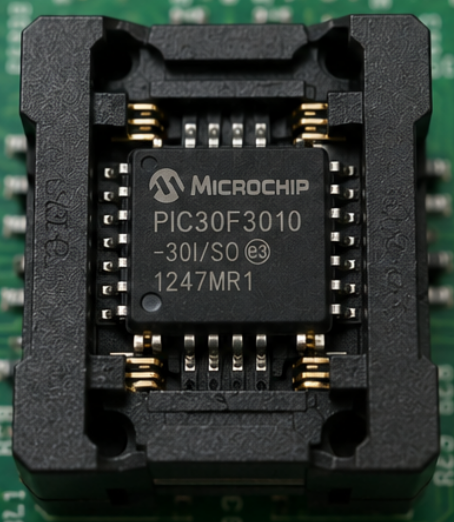

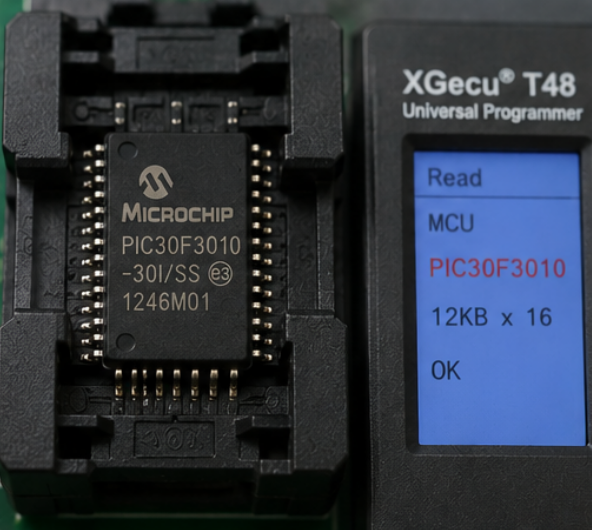

Clone Microchip dsPIC30F3010 16-Bit Digital Signal Controllers needs to firstly readout the content inside its memory and then reprogramme it to other blank dsPIC30F3010 Microcontrollers:
High-Performance Modified RISC CPU:
· Modified Harvard architecture
· C compiler optimized instruction set architecture
· 83 base instructions with flexible addressing modes
· 24-bit wide instructions, 16-bit wide data path
· 12 Kbytes on-chip Flash program space
· 1 Kbyte nonvolatile data EEPROM
· 16 x 16-bit working register array
· Up to 30 MIPs operation:
– DC to 40 MHz external clock input
– 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x)
· 27 interrupt sources
· Three external interrupt sources
· 8 user-selectable priority levels for each interrupt
· 4 processor exceptions and software traps
Peripheral Features:
· High current sink/source I/O pins: 25 mA/25 mA
· Three 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules
· Four 16-bit capture input functions
· Two 16-bit compare/PWM output functions
– Dual Compare mode available
· 3-wire SPI modules (supports 4 Frame modes)
· I2CTM module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
· Addressable UART modules with FIFO buffers
Motor Control PWM Module Features:
· 6 PWM output channels
– Complementary or Independent Output modes
– Edge and Center-Aligned modes
· 4 duty cycle generators
· Dedicated time base with 4 modes
· Programmable output polarity
· Dead-time control for Complementary mode
· Manual output control
· Trigger for synchronized A/D conversions
Quadrature Encoder Interface Module Features:
DSP Engine Features:
· Modulo and Bit-Reversed modes
· Two 40-bit wide accumulators with optional saturation logic
· 17-bit x 17-bit single-cycle hardware fractional/ integer multiplier
· Single-cycle Multiply-Accumulate (MAC) operation
Phase A, Phase B and Index Pulse input
16-bit up/down position counter
Count direction status
Position Measurement (x2 and x4) mode
Programmable digital noise filters on inputs
Alternate 16-bit Timer/Counter mode
Interrupt on position counter rollover/underflow
