Automotive Secured Microprocessor SPC560P40L3 Firmware Recovering

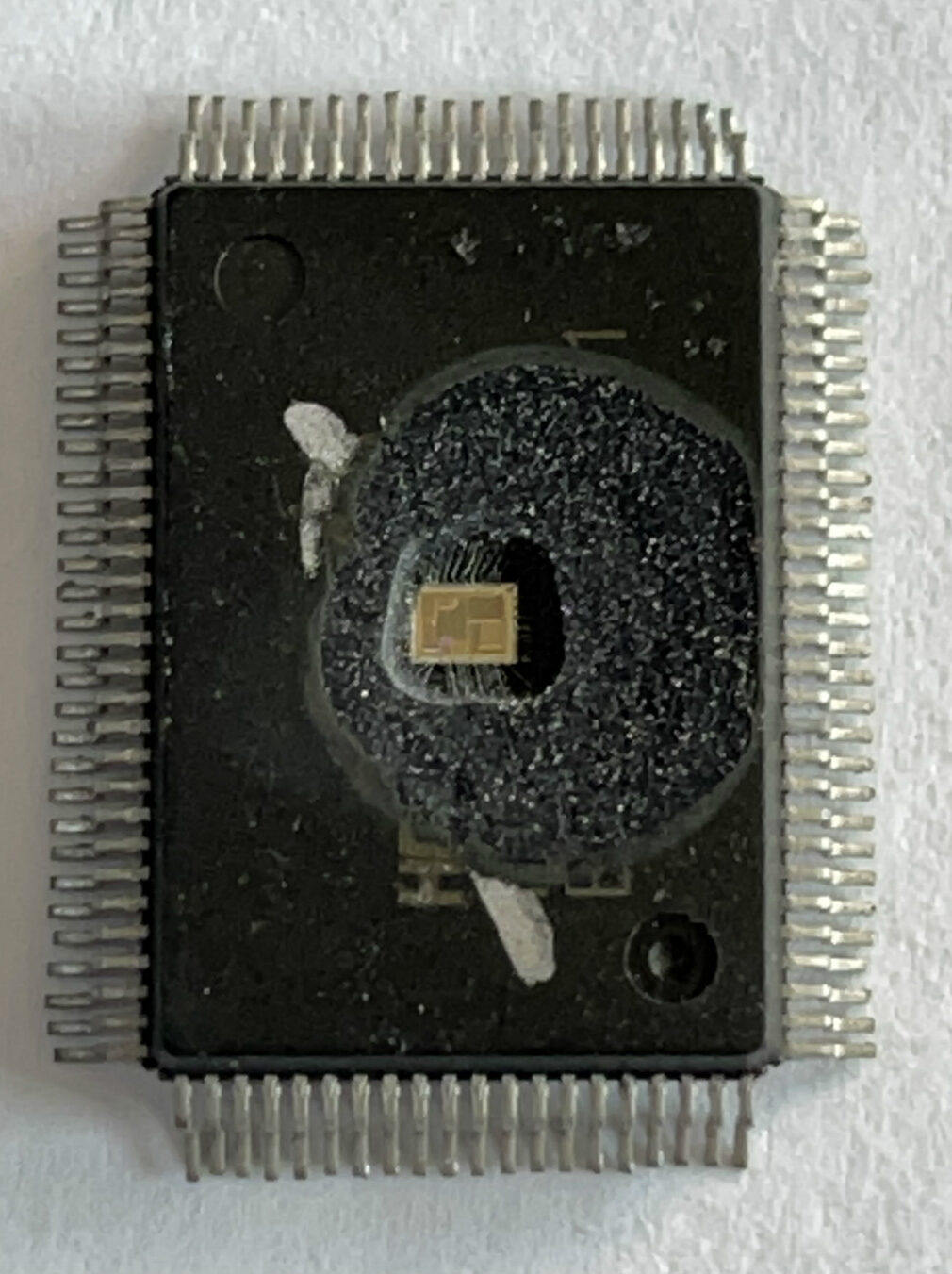

Automotive Secured Microprocessor SPC560P40L3 Firmware Recovering is a process starting from de-capsulate microprocessor’s silicon package and locate the locked bit of SPC560P40L3, then readout embedded program from mcu spc560p40l3 flash memory;
Below Table provides a summary of different members of the SPC560P34/SPC560P40 family and their features—relative to full-featured version—to enable a comparison among the family members and an understanding of the range of functionality offered within this family when reverse engineering spc560p40l1 mcu flash program.
SPC560P34/SPC560P40 is available in two configurations having different features: Full- featured and airbag. Table 3 shows the main differences between the two versions of the SPC560P40 MCU.
| Analog-to-digital converter (ADC) | Multi-channel, 10-bit analog-to-digital converter |
| Boot assist module (BAM) | Block of read-only memory containing VLE code which is executed according to the boot mode of the device |
| Clock generation module (MC_CGM) | Provides logic and control required for the generation of system and peripheral clocks |
| Controller area network (FlexCAN) | Supports the standard CAN communications protocol |
| Cross triggering unit (CTU) | Enables synchronization of ADC conversions with a timer event from the eMIOS or from the PIT |
| Crossbar switch (XBAR) | Supports simultaneous connections between two master ports and three slave ports; supports a 32-bit address bus width and a 32-bit data bus width |
