Unlock Microcontroller PIC16C58B Program File
Unlock microcontroller PIC16C58B program file from secured PIC16C58B microchip MCU’s flash memory and extract data heximal file from eeprom memory of PIC16C58B protective microprocessor;
When no prescaler is used in the process of Break IC Flash, the external clock input is the same as the prescaler output. The synchronization of T0CKI with the internal phase clocks is accomplished by sampling the prescaler output on the Q2 and Q4 cycles of the internal phase clocks in order to Unlock Microcontroller PIC16C58B Program File.
Therefore, it is necessary for T0CKI to be high for at least 2TOSC (and a small RC delay of 20 ns) and low for at least 2TOSC (and a small RC delay of 20 ns). Refer to the electrical specification of the desired device to Break ARM Microcontroller MCU Atmel AT91SAM7S256.
When a prescaler is used, the external clock input is divided by the asynchronous ripple counter-type prescaler so that the prescaler output is symmetrical. For the external clock to meet the sampling requirement, the ripple counter must be taken into account.
Therefore, it is necessary for T0CKI to have a period of at least 4TOSC (and a small RC delay of 40 ns) divided by the prescaler value to STMicroelectronics ST62T28 Memory Program Unlocking. The only requirement on T0CKI high and low time is that they do not violate the minimum pulse width requirement of 10 ns. Refer to parameters 40, 41 and 42 in the electrical specification of the desired device.

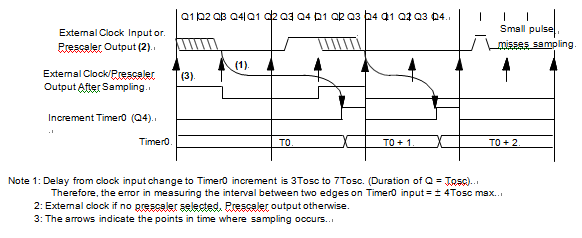

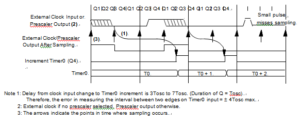

Since the prescaler output is synchronized with the internal clocks, there is a small delay from the time the external clock edge occurs to the time the Timer0 module is actually incremented in order to Crack PIC16C58A MCU Flash Memory. Below Figure shows the delay from the external clock edge to the timer incrementing.
An 8-bit counter is available as a prescaler for the Timer0 module, or as a postscaler for the Watchdog Timer (WDT), respectively (Section 7.6). For simplicity, this counter is being referred to as “prescaler” throughout this data sheet. Note that the prescaler may be used by either the Timer0 module or the WDT by the process of Clone MCU ST7FMC1K2B6 Program, but not both.
Thus, a prescaler assignment for the Timer0 module means that there is no prescaler for the WDT, and vice-versa.
