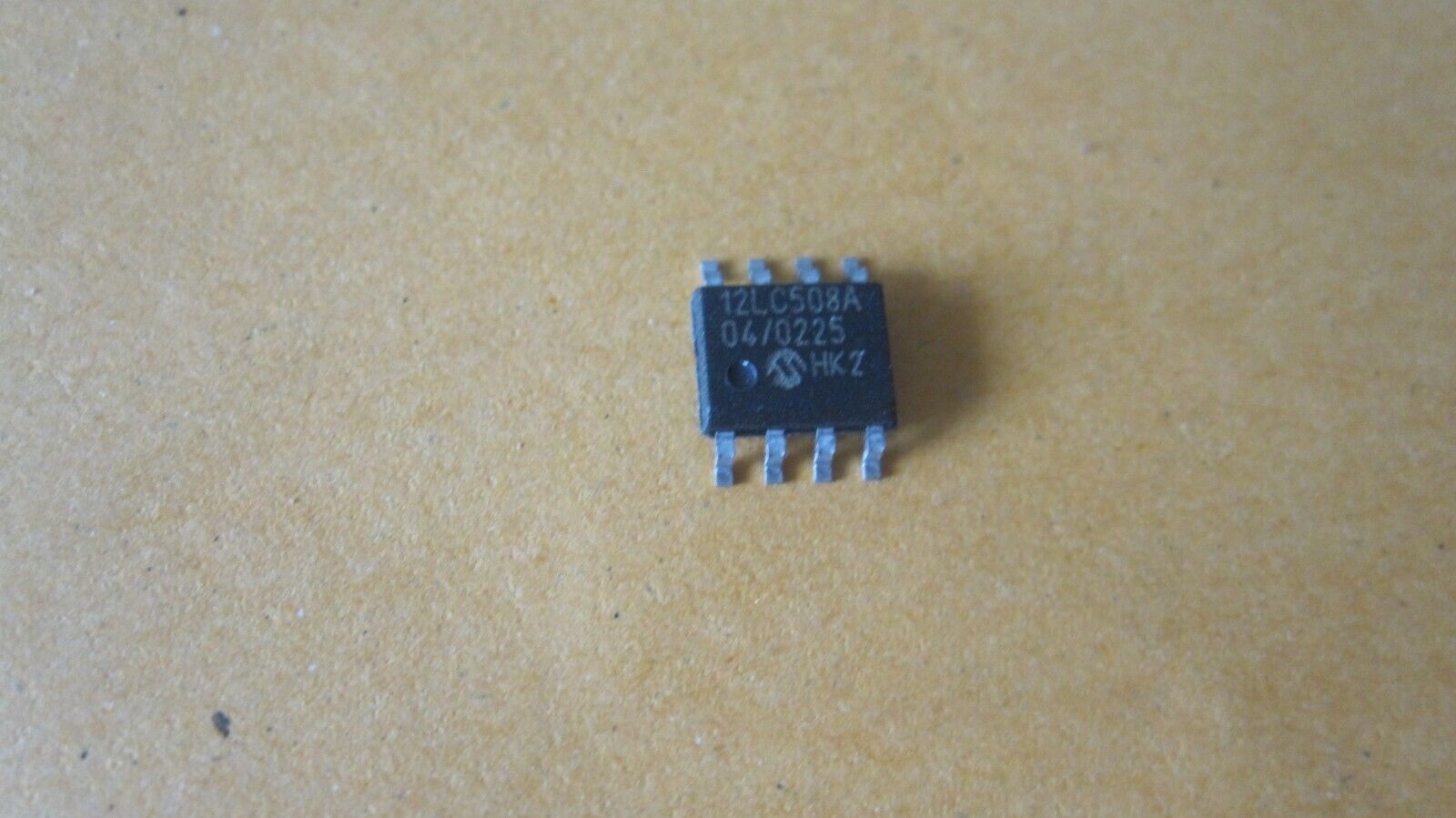

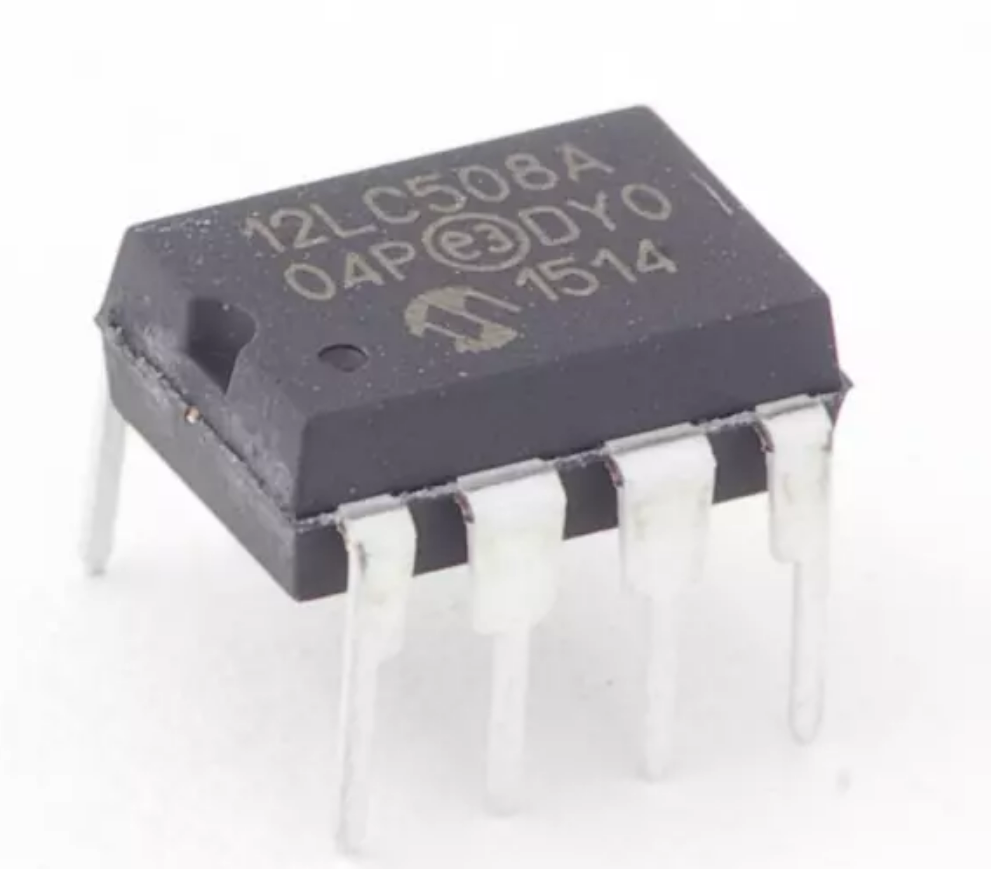

Unlock Microchip PIC12LC508A Memory Program
Unlock Microchip PIC12LC508A memory program from secured flash memory and eeprom data memory needs to crack protective PIC12LC508A microcontroller’s fuse bit in order to extract embedded firmware of binary file or heximal source code from original microprocessor PIC12LC508A;
As a program instruction is executed, the Program Counter (PC) will contain the address of the next program instruction to be executed when Unlock Microchip PIC12LC508A Memory Program. The PC value is increased by one every instruction cycle, unless an instruction changes the PC by Break IC program.
For a GOTO instruction, bits 8:0 of the PC are provided by the GOTO instruction word by Unlock MCU PIC16C622A Software. The PC Latch (PCL) is mapped to PC<7:0>. Bit 5 of the STATUS register provides page information to bit 9 of the PC.
For a CALL instruction, or any instruction where the PCL is the destination, bits 7:0 of the PC again are provided by the instruction word. However, PC<8> does not come from the instruction word when Crack MCU dsPIC30F3011 Program, but is always cleared. Instructions where the PCL is the destination, or Modify PCL instructions, include MOVWF PC, ADDWF PC, and BSF PC,5.
Because PC<8> is cleared in the CALL instruction, or any Modify PCL instruction, all subroutine calls or computed jumps are limited to the first 256 locations of any program memory page (512 words long).
The Program Counter is set upon a RESET, which means that the PC addresses the last location in the last page i.e., the oscillator calibration instruction for the purpose of Crack NXP P89C662 MCU Flash Memory. After executing MOVLW XX, the PC will roll over to location 00h, and begin executing user code.
The STATUS register page preselect bits are cleared upon a RESET, which means that page 0 is preselected. Therefore, upon a RESET, a GOTO instruction will automatically cause the program to jump to page 0 until the value of the page bits is altered when Copy MC68HC08BD24 MCU Embedded Program.
