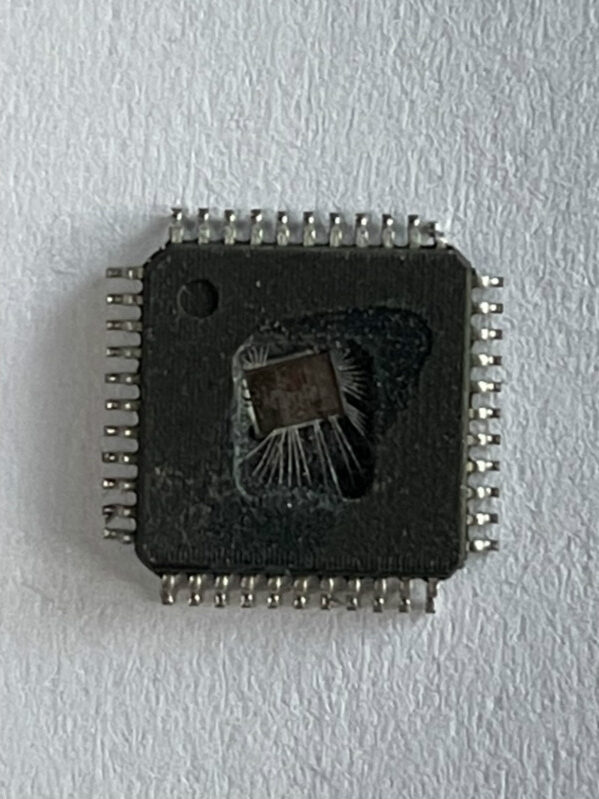

Crack NXP SPC5605BK0MLL6R Microcontroller Memory and extract embedded firmware from SPC5605BK Processor’s flash memory, the original Microcomputer SPC5605BK functions can be completely restored;

The main oscillator provides these features:

• Input frequency range: 4–40 MHz
  • Crystal input mode or oscillator input mode
  • PLL reference

This device has an RC ladder phase-shift oscillator. The architecture uses constant current charging of a capacitor. The voltage at the capacitor is compared by the stable bandgap reference voltage.

The RC oscillator provides these features:

• Nominal frequency 16 MHz
  • ±5% variation over voltage and temperature after process trim
  • Clock output of the RC oscillator serves as system clock source in case loss of lock or loss of clock is detected by the PLL to crack microprocessor spc5604ee flash memory

RC oscillator is used as the default system clock during startup

The PIT module implements these features:

• 4 general-purpose interrupt timers
  • 32-bit counter resolution
  • Clocked by system clock frequency
  • Each channel usable as trigger for a DMA request

The STM implements these features:

• One 32-bit up counter with 8-bit prescaler
  • Four 32-bit compare channels
  • Independent interrupt source for each channel
  • Counter can be stopped in debug mode

The SWT has the following features:

• 32-bit time-out register to set the time-out period
  • Programmable selection of window mode or regular servicing for unlocking freescale spc5604 microcontroller flash memory data
  • Programmable selection of reset or interrupt on an initial time-out
  • Master access protection
  • Hard and soft configuration lock bits
  • Reset configuration inputs allow timer to be enabled out of reset
