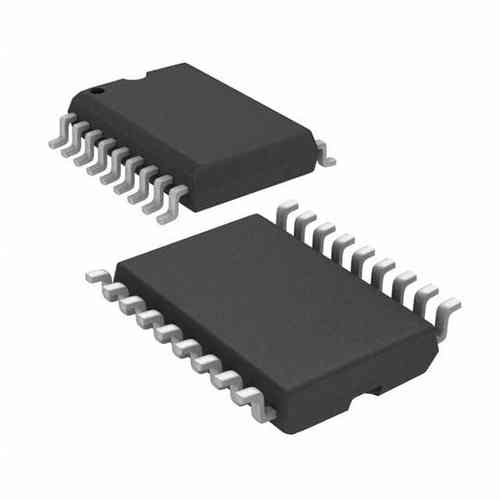

Crack Chip PIC16F83 Eeprom

Crack Chip PIC16F83 and recover mcu pic16f83 Eeprom data and flash program from it, copy microcontroller pic16f83 firmware to new MCU which will provide the same functions as originals.

Crack Chip PIC16F83 and recover mcu pic16f83 Eeprom data and flash program from it, copy microcontroller pic16f83 firmware to new MCU which will provide the same functions as originals
Crack Chip PIC16F83 and recover mcu pic16f83 Eeprom data and flash program from it, copy microcontroller pic16f83 firmware to new MCU which will provide the same functions as originals

High Performance RISC CPU Features:

• Only 35 single word instructions to learn

• All instructions single cycle except for program branches which are two-cycle Operating speed: DC – 10 MHz clock input

DC – 400 ns instruction cycle

14-bit wide instructions

8-bit wide data path

15 special function hardware registers

Eight-level deep hardware stack

Direct, indirect and relative addressing modes

Four interrupt sources:

– External RB0/INT pin

– TMR0 timer overflow

– PORTB<7:4> interrupt on change

– Data EEPROM write complete

· 1000 erase/write cycles Flash program memory if Crack microcontroller pic16f506 binary

· 10,000,000 erase/write cycles EEPROM data memory

unlock microchip pic16f83 microcontroller fuse bit and extract embedded heximal file from flash memory
unlock microchip pic16f83 microcontroller fuse bit and extract embedded heximal file from flash memory

· EEPROM Data Retention > 40 years

Peripheral Features:

· 13 I/O pins with individual direction control

· High current sink/source for direct LED drive

– 25 mA sink max. per pin

– 20 mA source max. per pin

· TMR0: 8-bit timer/counter with 8-bit programmable prescaler

Special Microcontroller Features:

· In-Circuit Serial Programming (ICSP™) – via two pins (ROM devices support only Data EEPROM programming)

· Power-on Reset (POR)

· Power-up Timer (PWRT) when unlock pic16f57 Chip memory

· Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Code-protection

· Power saving SLEEP mode

· Selectable oscillator options

CMOS Flash/EEPROM Technology:

Low-power, high-speed technology

· Fully static design

· Wide operating voltage range:

– Commercial: 2.0V to 6.0V

– Industrial:   2.0V to 6.0V

· Low power consumption:

– < 2 mA typical @ 5V, 4 MHz

– 15 µA typical @ 2V, 32 kHz

– < 1 µA typical standby current @ 2V

Circuit Engineering Company Limited continues to be recognized as the Southern China Leader in Services for IC Read, MCU Crack, Chip Extract, Microcontroller Unlock service. With the advancement of today’s modern circuit board technology, it is more important than ever to have specialists available to help you at a moment’s notice. Our engineering and commercial teams collectively have a vast amount of electronic experience covering field include Consumer Electronics, Industrial Automation Electronics, Wireless Communication Electronics., etc. For more information please contact us through email.
